Atlas V
Description
Atlas V is an expendable launch system and the fifth major version in the Atlas rocket family. It was originally designed by Lockheed Martin, now being operated by United Launch Alliance (ULA), a joint venture between Lockheed and Boeing. Each Atlas V rocket consists of two main stages. The first stage is powered by a Russian RD-180 engine manufactured by RD Amross and burning kerosene and liquid oxygen. The Centaur upper stage is powered by one or two United States RL10 engine(s) manufactured by Aerojet Rocketdyne and burning liquid hydrogen and liquid oxygen. AJ-60A strap-on solid rocket boosters (SRBs) have been used in some configurations, but are being phased out in favor of GEM-63 SRBs.
Missions
103
Success Rate
99.5%
Successes
102
Failures
0
Success Streak
93
Partial Failures
1
Next Up
ViaSat-3 F2
Previous
Project Kuiper (KA-02)
Project Kuiper (KA-01)
Configurations

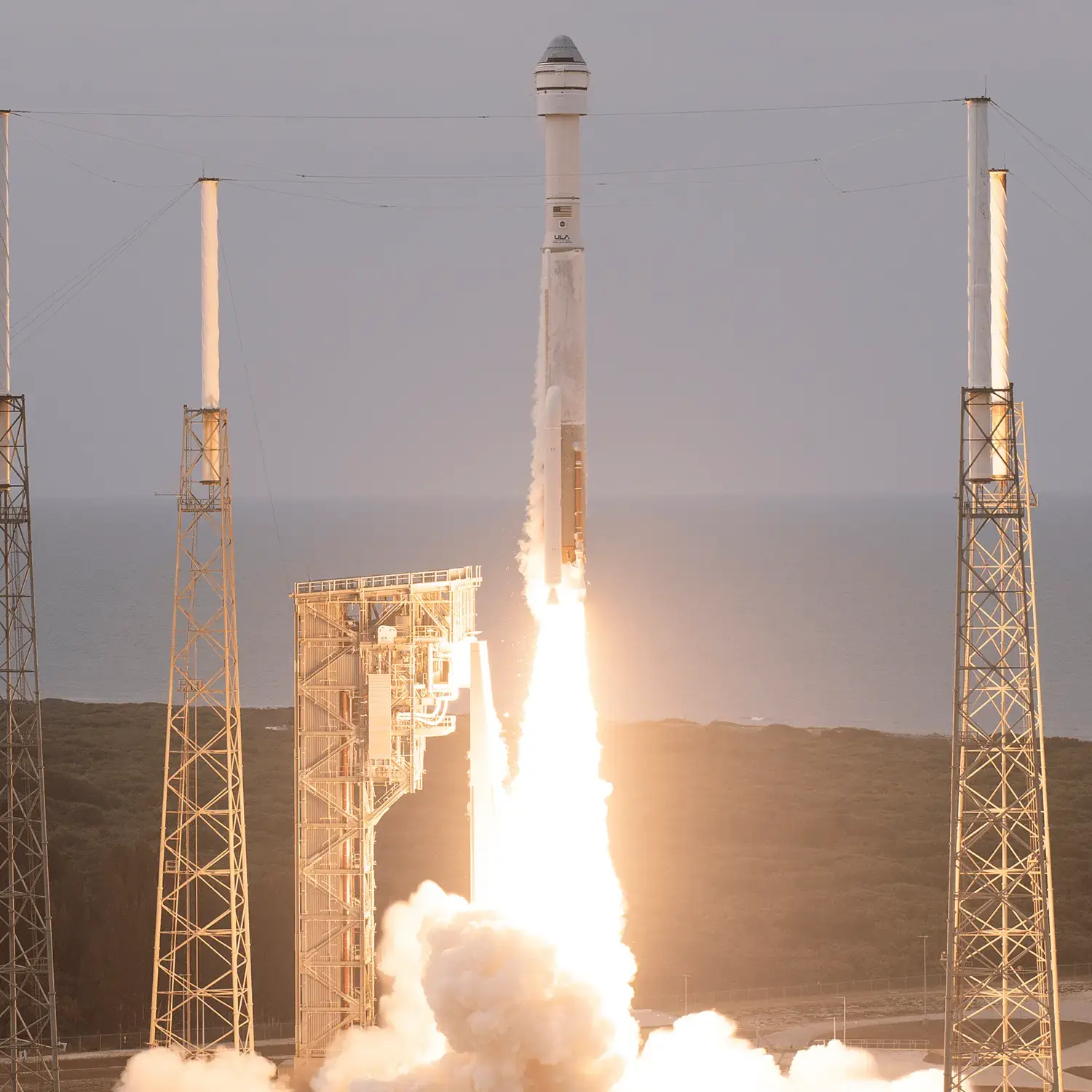

Atlas V N22
Active Since 2019
Rocket
Diameter: 3.81m
Height: 62.2m
Payload to Orbit
LEO: 13,000 kg
Liftoff Thrust
7,152 Kilonewtons
Stages
2
Strap-ons
2
Atlas V 551
Active Since 2006
Price
$153.00 million
Rocket
Diameter: 3.81m
Height: 62.2m
Payload to Orbit
LEO: 18,850 kg
GTO: 8,900 kg
Liftoff Thrust
12,141 Kilonewtons
Fairing
Diameter: 5.4m
Height: 26.5m
Stages
2
Strap-ons
5

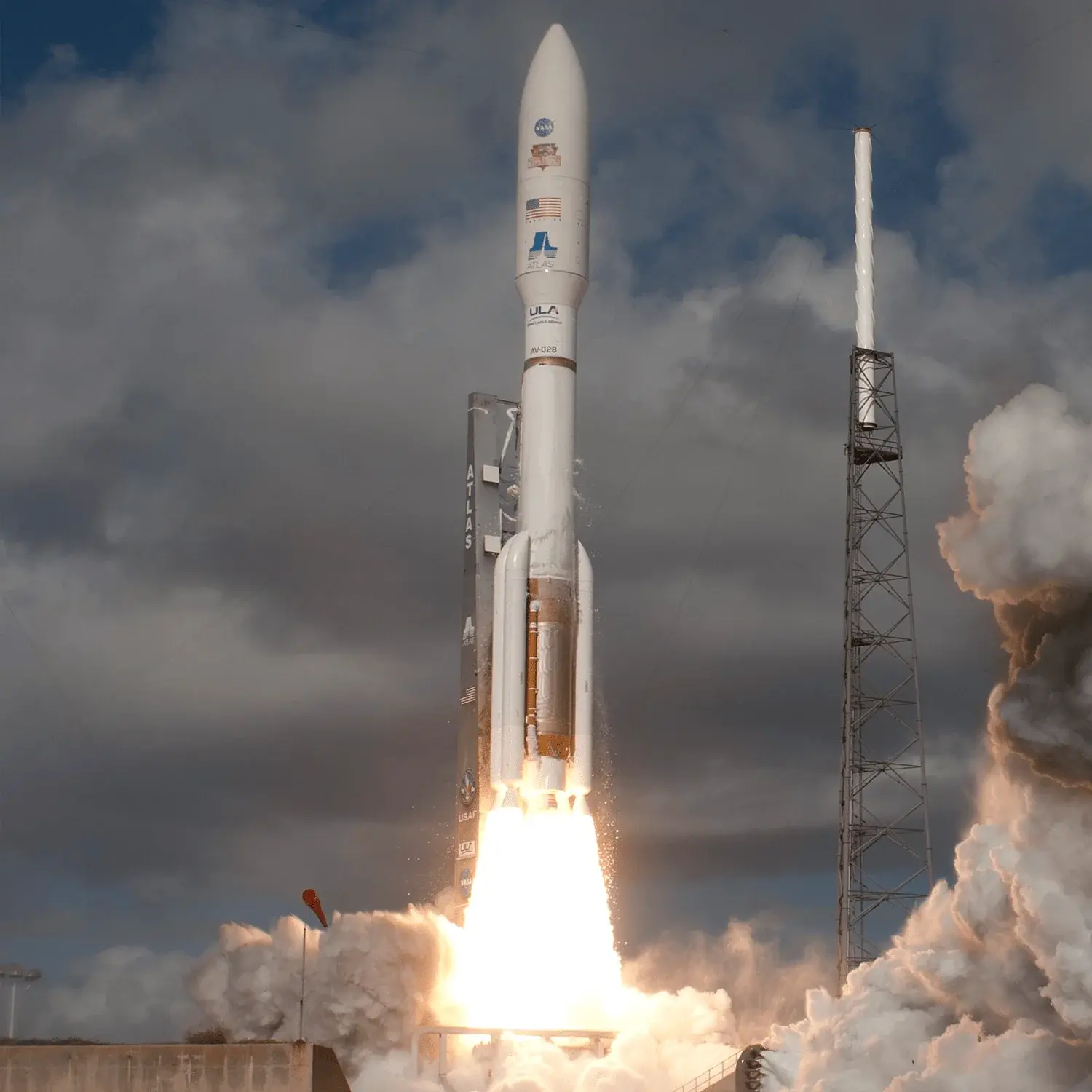

Atlas V 541
Active 2011 to 2022
Price
$145.00 million
Rocket
Diameter: 3.81m
Height: 62.2m
Payload to Orbit
LEO: 17,410 kg
GTO: 8,290 kg
Liftoff Thrust
10,478 Kilonewtons
Fairing
Diameter: 5.4m
Height: 26.5m
Stages
2
Strap-ons
4

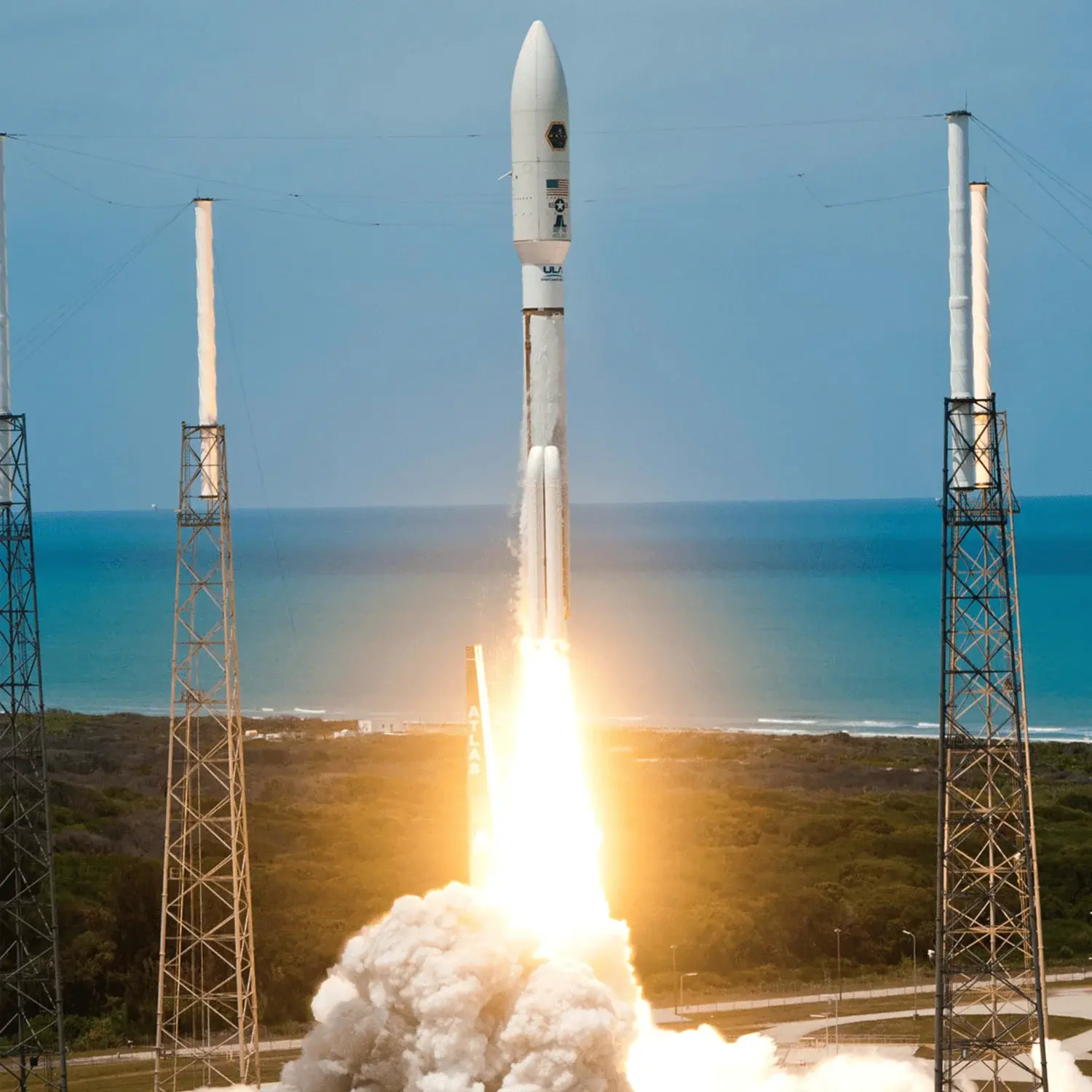

Atlas V 531
Active 2010 to 2022
Price
$140.00 million
Rocket
Diameter: 3.81m
Height: 62.2m
Payload to Orbit
LEO: 15,530 kg
GTO: 7,450 kg
Liftoff Thrust
8,815 Kilonewtons
Fairing
Diameter: 5.4m
Height: 26.5m
Stages
2
Strap-ons
3

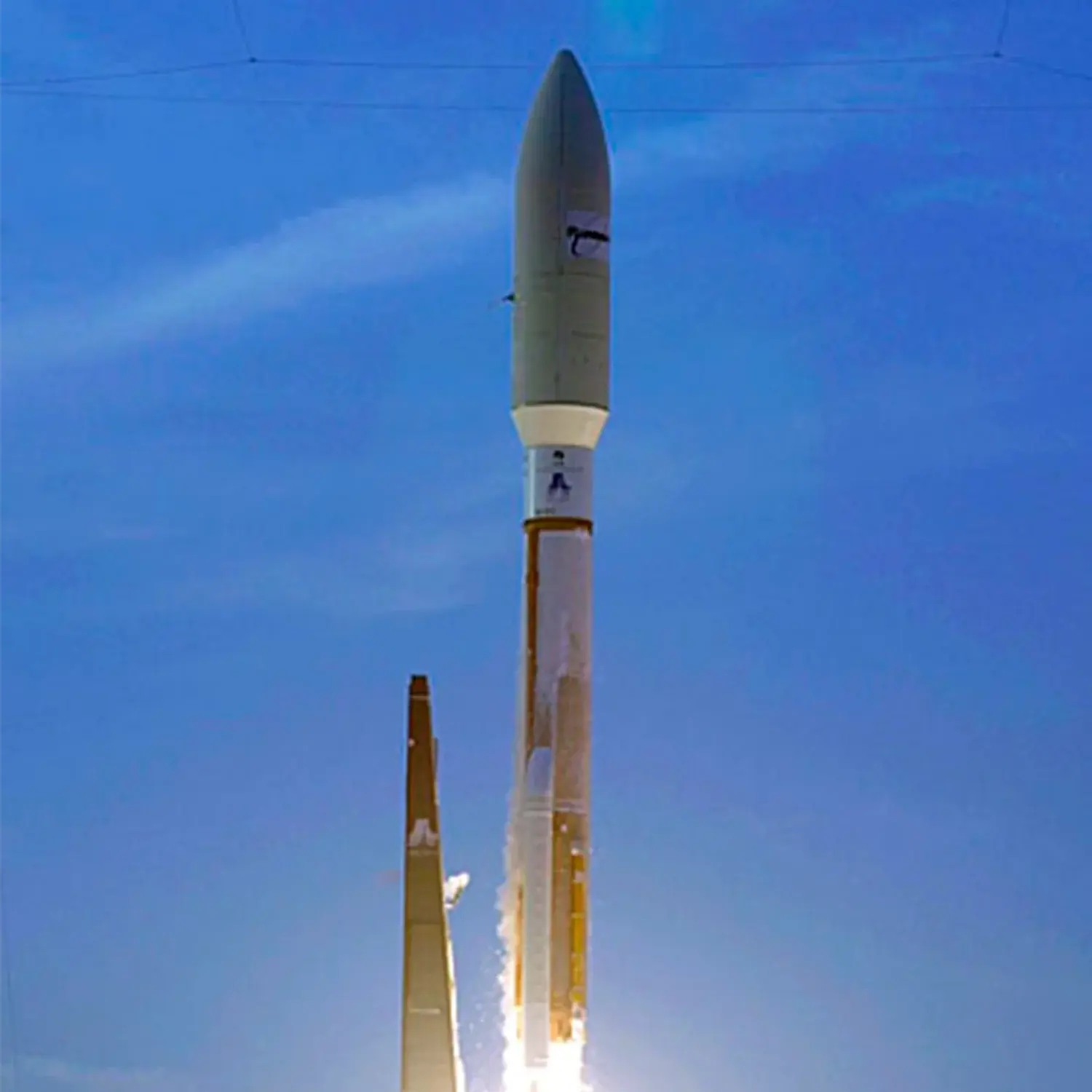

Atlas V 521
Active 2003 to 2004
Price
$135.00 million
Rocket
Diameter: 3.81m
Height: 62.2m
Payload to Orbit
LEO: 13,500 kg
GTO: 6,480 kg
Liftoff Thrust
7,152 Kilonewtons
Fairing
Diameter: 5.4m
Height: 26.5m
Stages
2
Strap-ons
2

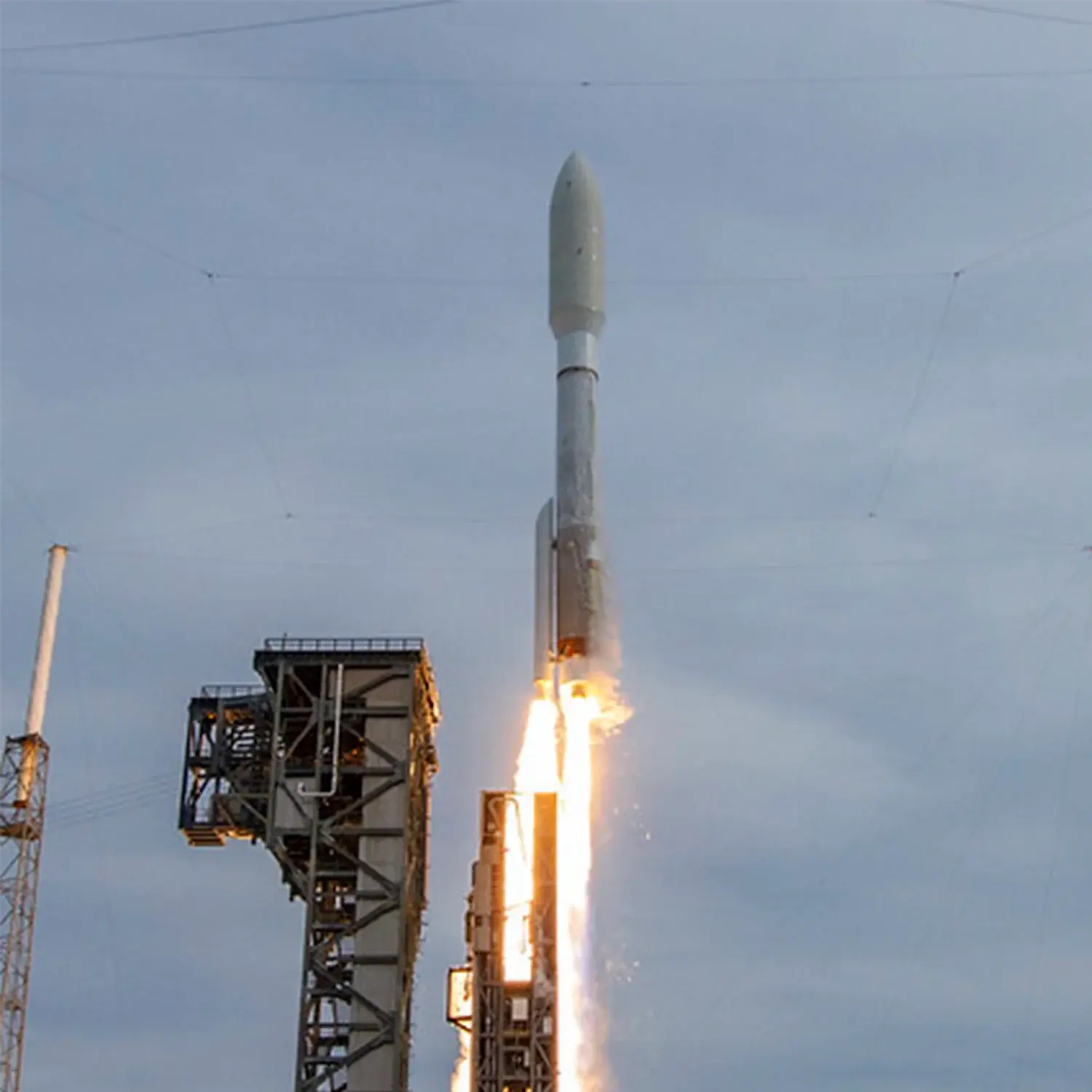

Atlas V 511
Active in 2022
Price
$130.00 million
Rocket
Diameter: 3.81m
Height: 62.2m
Payload to Orbit
LEO: 11,000 kg
GTO: 5,250 kg
Liftoff Thrust
5,489 Kilonewtons
Fairing
Diameter: 5.4m
Height: 26.5m
Stages
2
Strap-ons
1

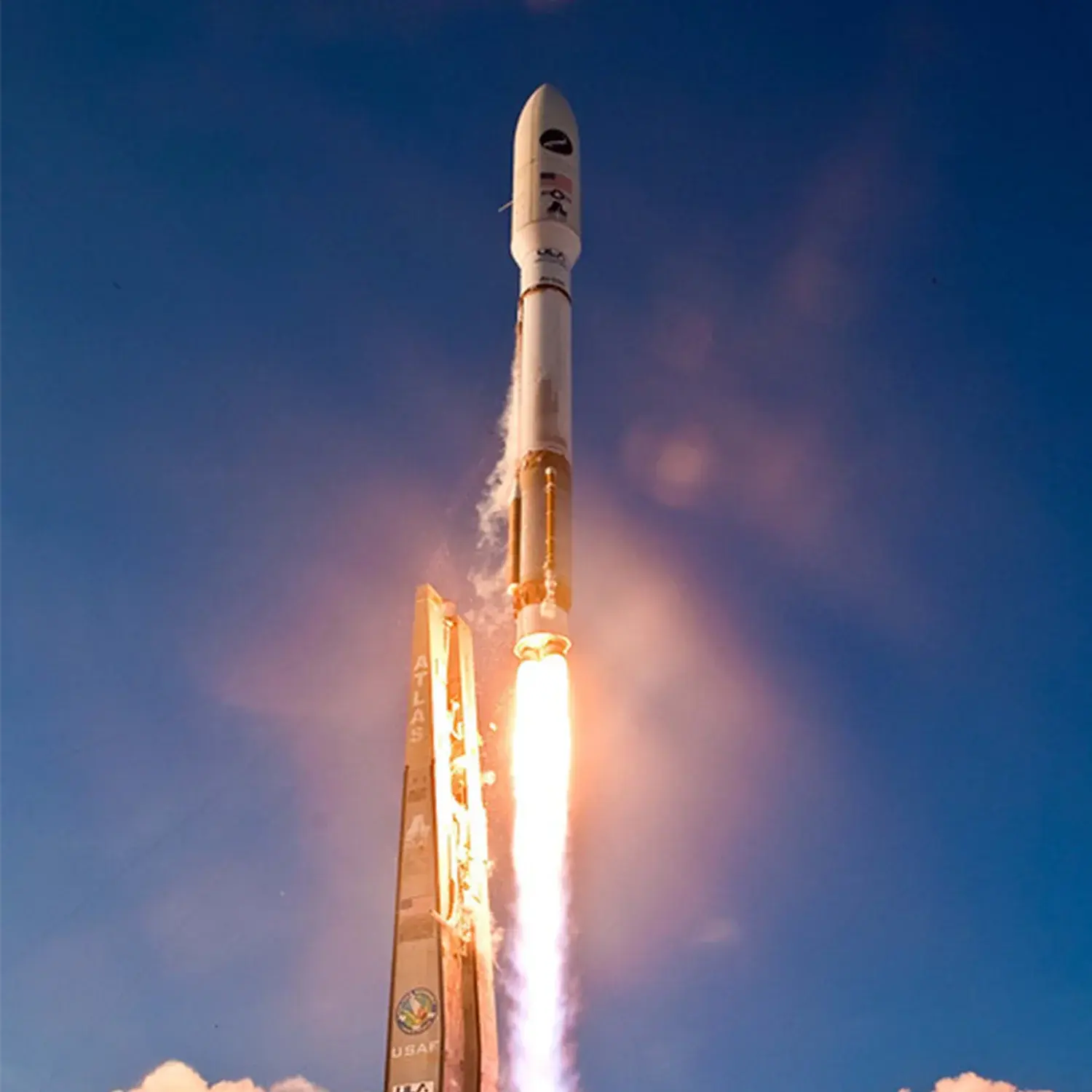

Atlas V 501
Active 2010 to 2023
Price
$120.00 million
Rocket
Diameter: 3.81m
Height: 62.2m
Payload to Orbit
LEO: 8,210 kg
GTO: 3,780 kg
Liftoff Thrust
3,826 Kilonewtons
Fairing
Diameter: 5.4m
Height: 26.5m
Stages
2

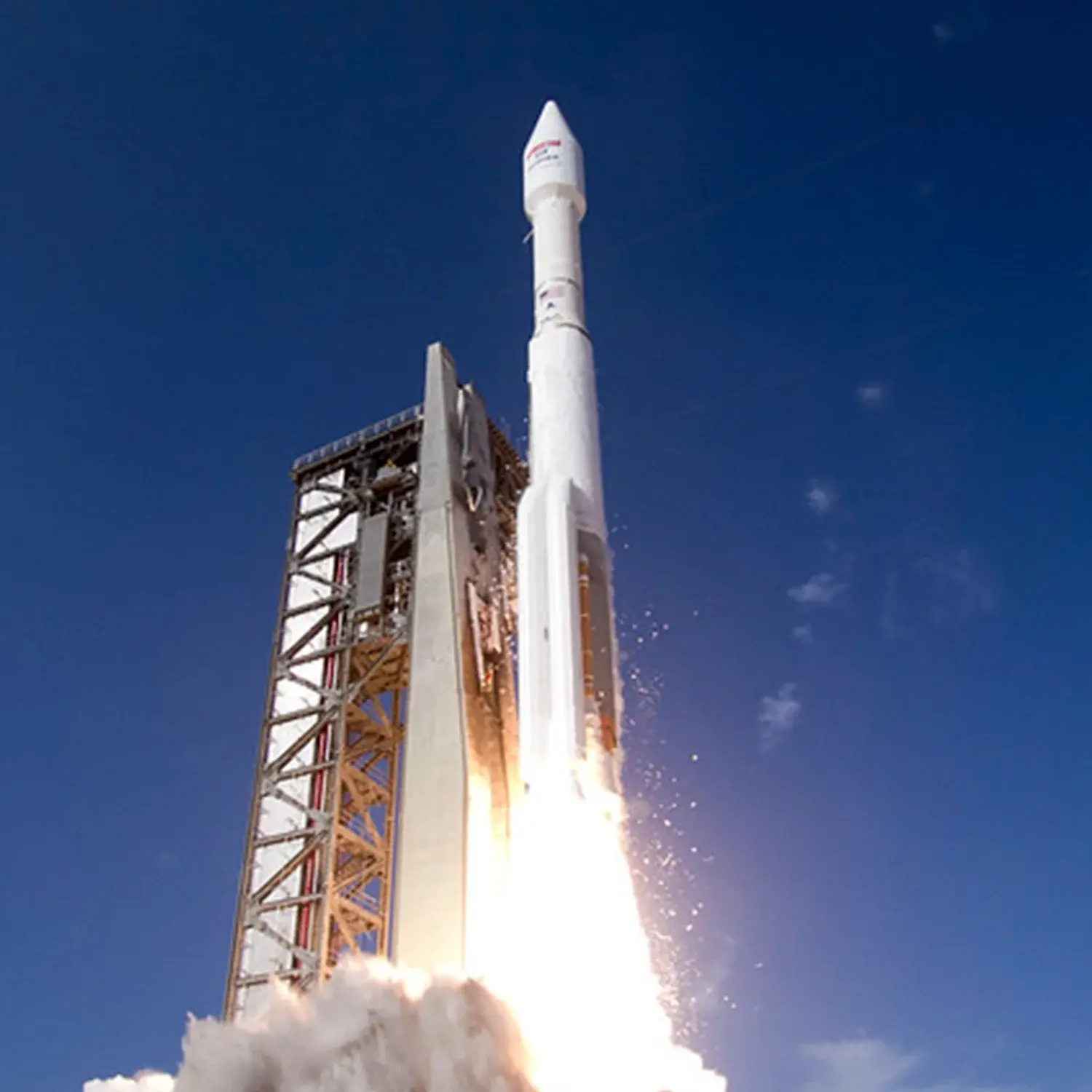

Atlas V 431
Active 2005 to 2016
Price
$130.00 million
Rocket
Diameter: 3.81m
Height: 59.1m
Payload to Orbit
LEO: 15,260 kg
GTO: 7,700 kg
Liftoff Thrust
8,815 Kilonewtons
Fairing
Diameter: 4.2m
Height: 13.8m
Stages
2
Strap-ons
3

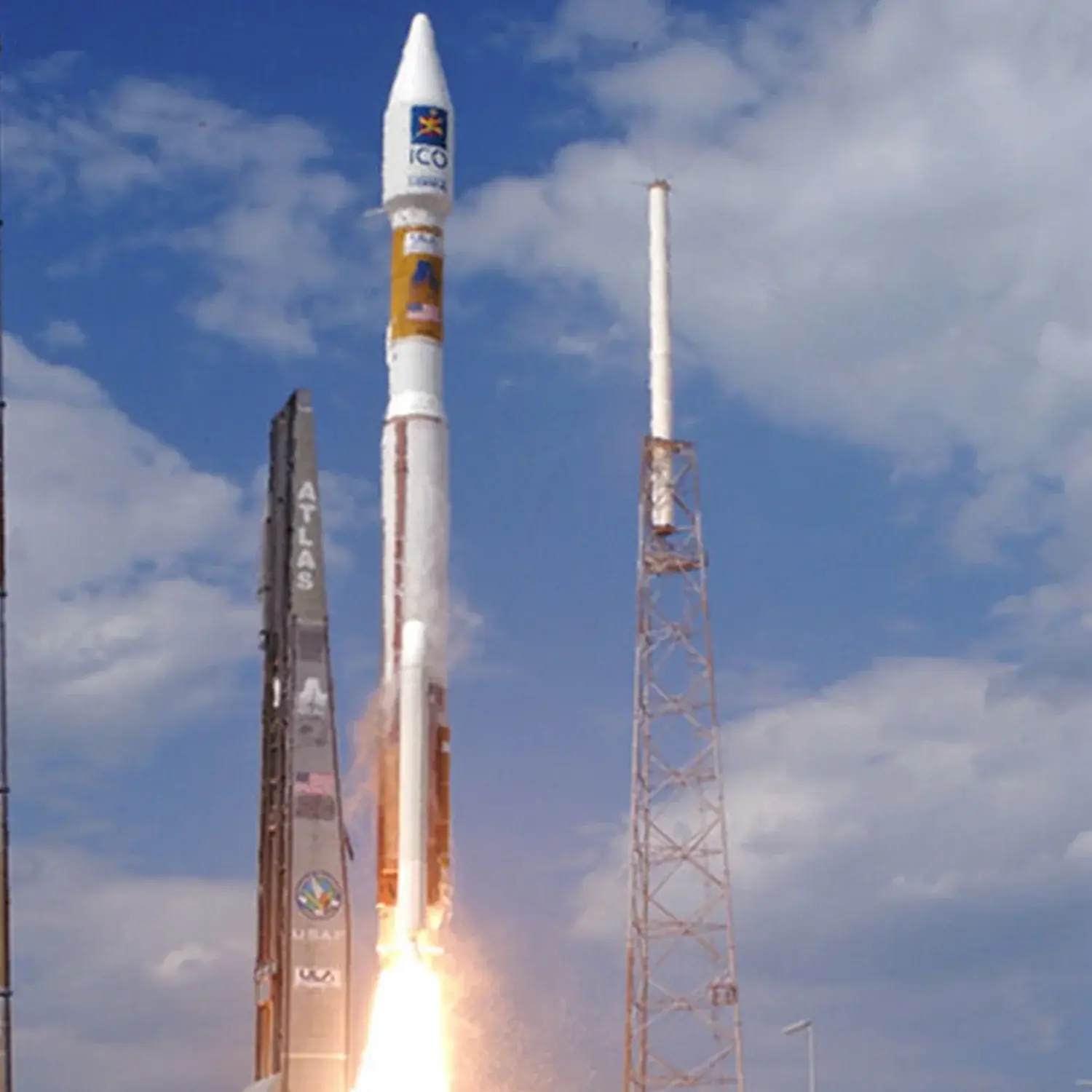

Atlas V 421
Active 2007 to 2022
Price
$123.00 million
Rocket
Diameter: 3.81m
Height: 58.3m
Payload to Orbit
LEO: 13,600 kg
GTO: 6,890 kg
Liftoff Thrust
7,152 Kilonewtons
Fairing
Diameter: 4.2m
Height: 13.8m
Stages
2
Strap-ons
2

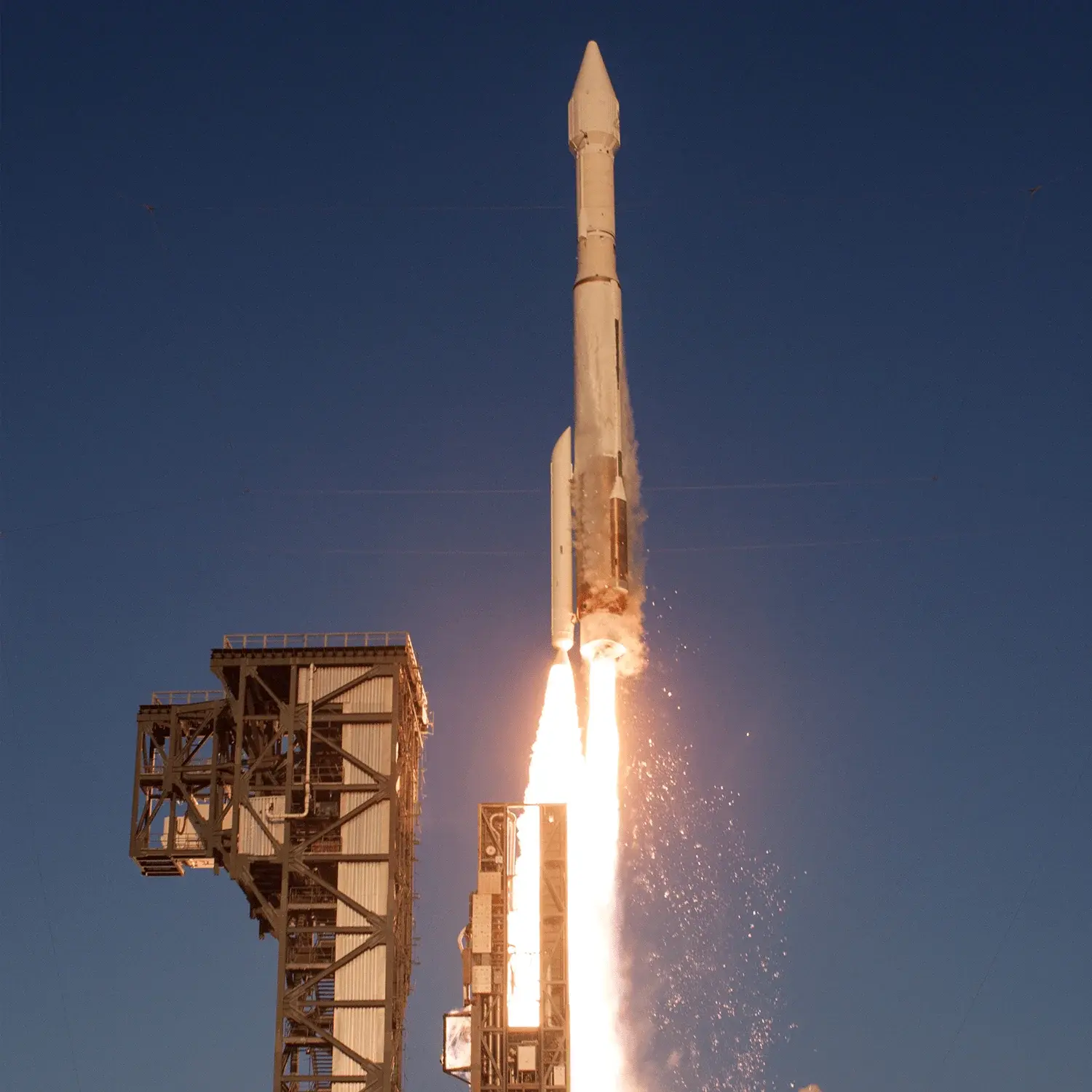

Atlas V 411
Active 2006 to 2020
Price
$115.00 million
Rocket
Diameter: 3.81m
Height: 58.3m
Payload to Orbit
LEO: 12,030 kg
GTO: 5,950 kg
Liftoff Thrust
5,489 Kilonewtons
Fairing
Diameter: 4.2m
Height: 13.8m
Stages
2
Strap-ons
1
Atlas V 401
Active 2002 to 2022
Price
$109.00 million
Rocket
Diameter: 3.81m
Height: 58.3m
Payload to Orbit
LEO: 9,797 kg
GTO: 4,750 kg
Liftoff Thrust
3,826 Kilonewtons
Fairing
Diameter: 4.2m
Height: 13.8m
Stages
2
